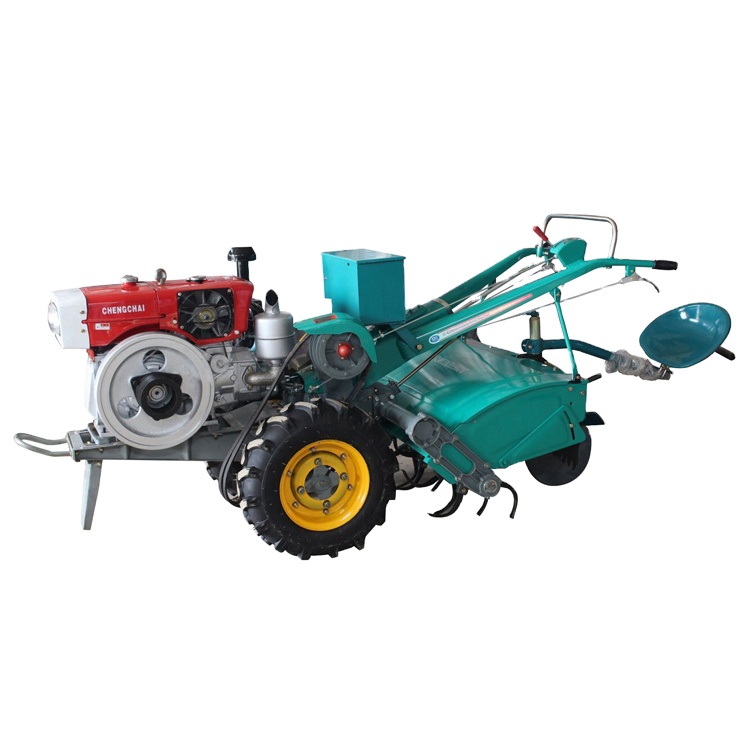

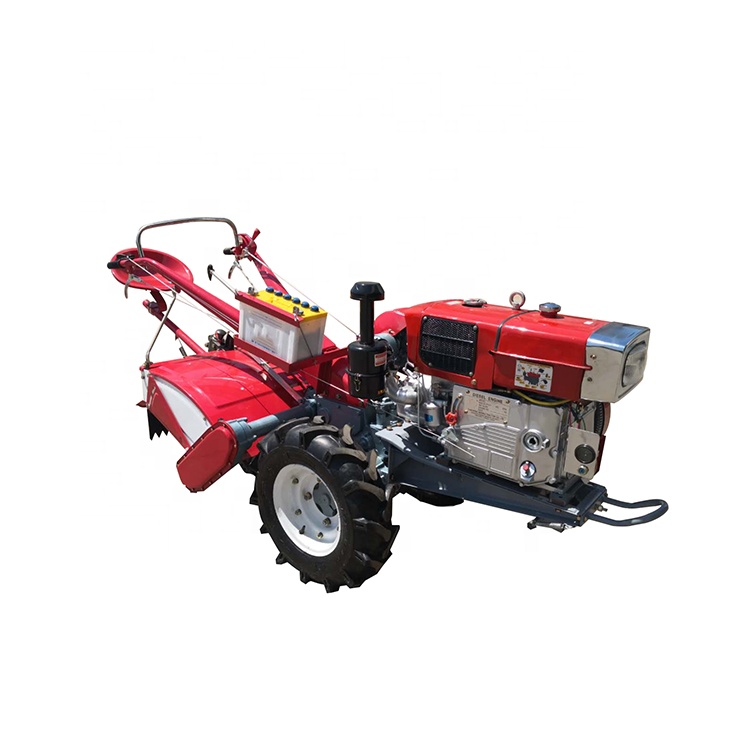

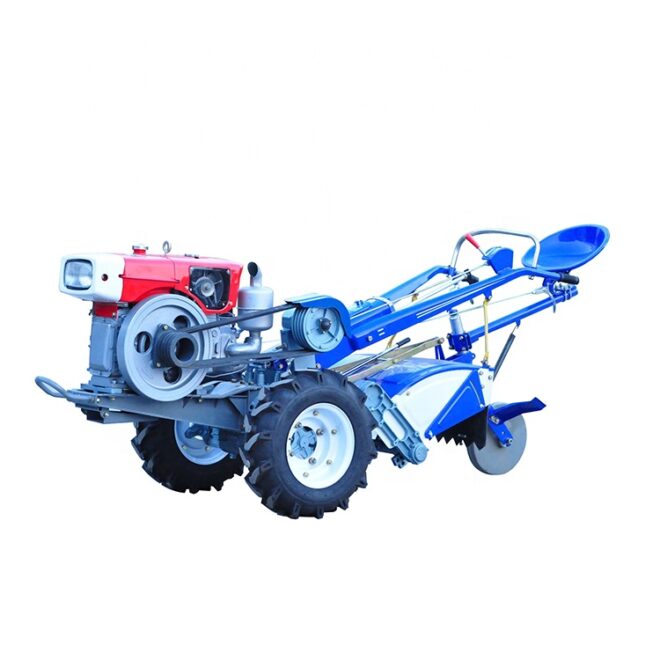

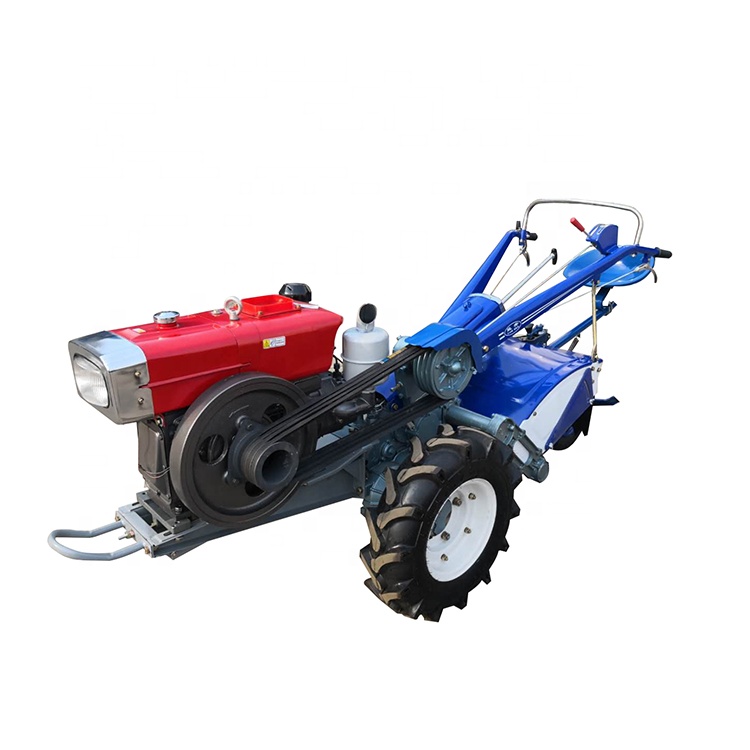

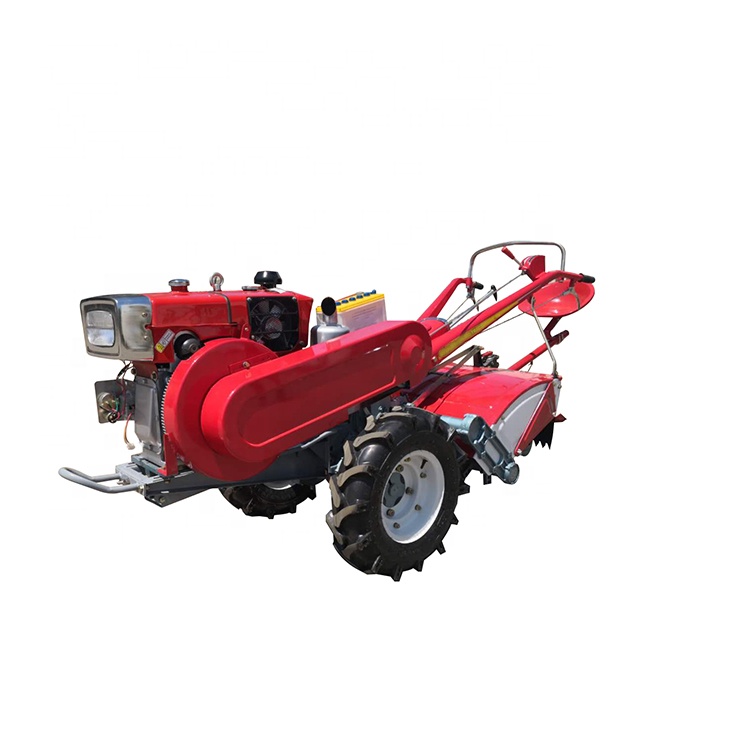

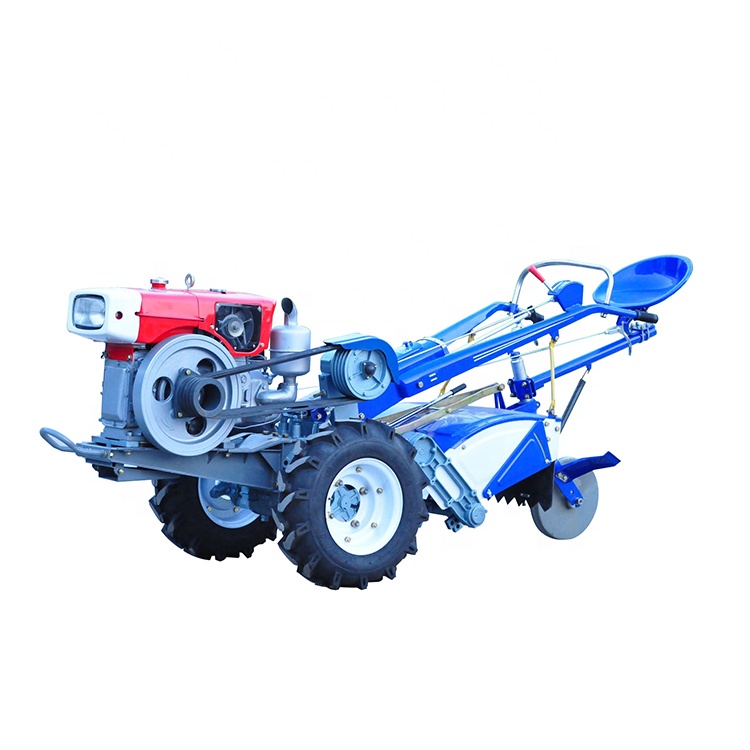

Product Introduction of DF-151 Walking Tractor

DF-151 walking tractor is a powerful and versatile agricultural machine designed to meet the needs of various farming operations. It is equipped with an efficient diesel engine and is suitable for various operations such as tillage, sowing, weeding, transportation, etc. Its sturdy and durable structure and humanized design ensure easy operation and long-term reliable use, making it an ideal choice for farmers to improve production efficiency. In this article, we will introduce the characteristics of our walking tractor as well as related parameters and applications.

Product Features of DF-151 Walking Tractor

Efficient diesel engine: Provides strong power to ensure efficient completion of various farming operations.
Versatile design: Can be equipped with a variety of agricultural implements to achieve various functions such as tillage, sowing, weeding, transportation, etc.
Sturdy and durable: Made of high-quality materials, with a sturdy structure, it can adapt to various harsh working environments.
Easy to operate: The design is ergonomic and simple to operate, making it easy for even beginners to get started.
Economical and practical: High fuel efficiency and low maintenance costs save money for farmers.

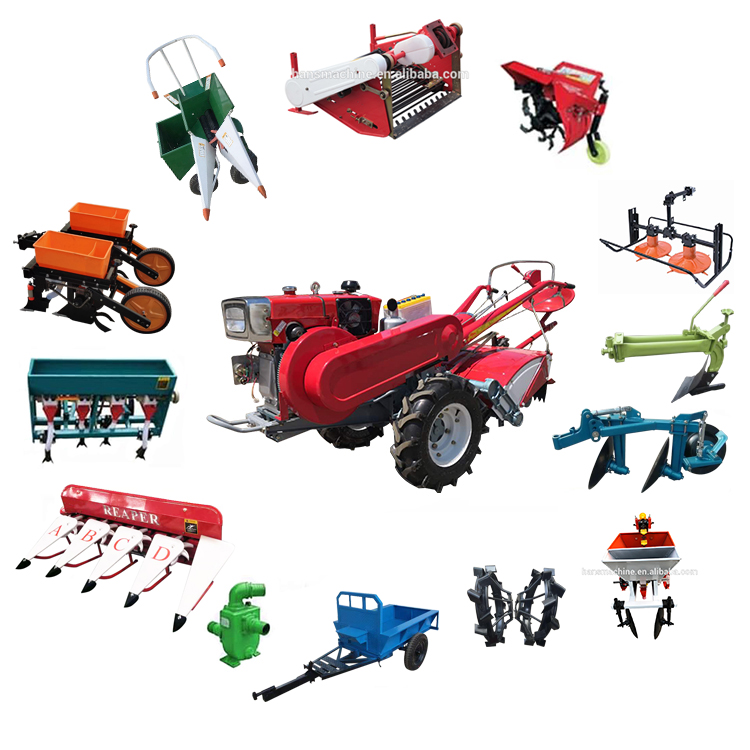

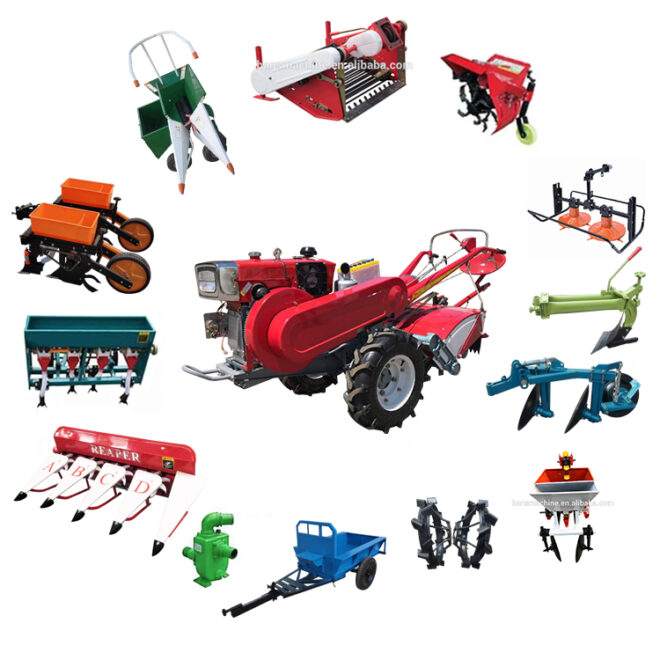

We also have many accessories that can be used together, such as: harvesters, rotary tillers, plows and other accessories. If you need them, you can contact us at any time.

Technical parameters

Model: DF-151
Engine type: high-efficiency diesel engine
Power: 12/15/18/20/22 horsepower
In the table below, we will introduce the relevant parameters of our products in detail. Of course, if you have any questions, you can consult us directly.

WALKING TRACTOR Technical Parameter
Model(with Power tiller)		DF12	DF15	DF18	DF20	DF22
Weight(kgs)	Without Rotary Tiller	360	371	371	396	401
Weight(kgs)	With Rotary Tiller	490	515	515	540	545
Turning speed of Rotary Tiller shaft(Rpm)	Low	188	188	188	188	188
Turning speed of Rotary Tiller shaft(Rpm)	High	300	300	300	300	300
Overall dimensions(LWH)(cm)		26896125	26896125	26896125	26896125	26896125
Number of blades(pcs)		18	24 or 26	24or 26	24or 26	24or26
Rototiller width(mm)		600	900	900/1000	900/1000	900/1000
Type of tractor		Single axle,dual-purpose for both tractorand drive
Traveling Speed(km/h)	Forward	1.4,2.5,4.1,5.3,9.4,15.3
Traveling Speed(km/h)	Reverse	1.1,3.8

Tyre size	600-12	600-12	600-12	600-12	600-12
Wheel track(mm)	800,740,640580(Standard 800)
Min.groundclearance(mm)	185
Model ofengine	ZS195NL	ZS1100NL	ZS1105NL	ZS1110NL	ZS1115NL
Type of engine	Single cylinder,Horizontal,4-stroke,directly injection,With oil bath longair filter

Borex stroke(mm)	95*115	100*115	105*115	110*115	115*115
Total displacement(L)	0.815	0.903	0.996	1.093	1.194
Compression ratio	17:1
Turing speedof crankshaft	2200
1-hour rated output(kw/hp)	10.6kw/14hp	12.1kw/16hp	13.2kw/18hp	14.7kw/20hp	30kw/22hp
12-hour rated output(kw/hp)	8.82kw/12hp	11.03kw/15hp	11.76kw/16hp	13.23kw/18hp	14.7kw/20hp

Application arears

Plowland: Ideal for tillage operations across a variety of soil types, ensuring optimal soil preparation for planting.
Sowing: Can be fitted with a precision seeder attachment, allowing for accurate and efficient sowing of seeds.
Weeding: Equipped with a weeder, this attachment effectively controls weeds, promoting healthy crop growth and reducing the need for chemical herbicides.
Transportation: With the addition of a transport bucket, the two-wheel walking tractor can be used for short-distance transport of agricultural products and materials, improving efficiency in the field.

Our two-wheel walking tractor is highly versatile and can be equipped with a range of attachments, making it suitable for various agricultural tasks and ensuring maximum productivity in different farming scenarios.

Product advantages of walking tractor

High performance: Strong power output and multi-speed transmission design to ensure efficient operation of various operations.
Adaptability: Able to operate in various terrain conditions such as plains, hills and mountains.
User-friendly: Easy to operate and maintain, and easy replacement of accessories.
Economic benefits: High fuel efficiency and low maintenance costs, reducing farmers’ production costs.

Instructions for use

Start: Choose manual or electric start according to the use environment to ensure stable start of the machine.
Operation: Select the appropriate gear according to the operation requirements to ensure the best operation effect.
Maintenance: Check the engine and transmission oil level regularly to ensure the normal operation of the machine.

Maintenance and Care

Daily Inspection: Check the oil level, fasteners and drive belt status before each use to ensure the machine is normal.
Regular Maintenance: Perform regular maintenance according to the instruction manual, including changing the oil, cleaning the filter and checking the battery status.
Storage Recommendations: When not in use for a long time, the machine should be stored in a dry and ventilated place to avoid moisture and rust.

Summary

The DF-151 walking tractor is an ideal choice for modern farmers with its high efficiency, versatility and ruggedness. Whether on plains or in mountains, this tractor can provide reliable performance and efficient operation, providing strong support for farmers’ production activities.
